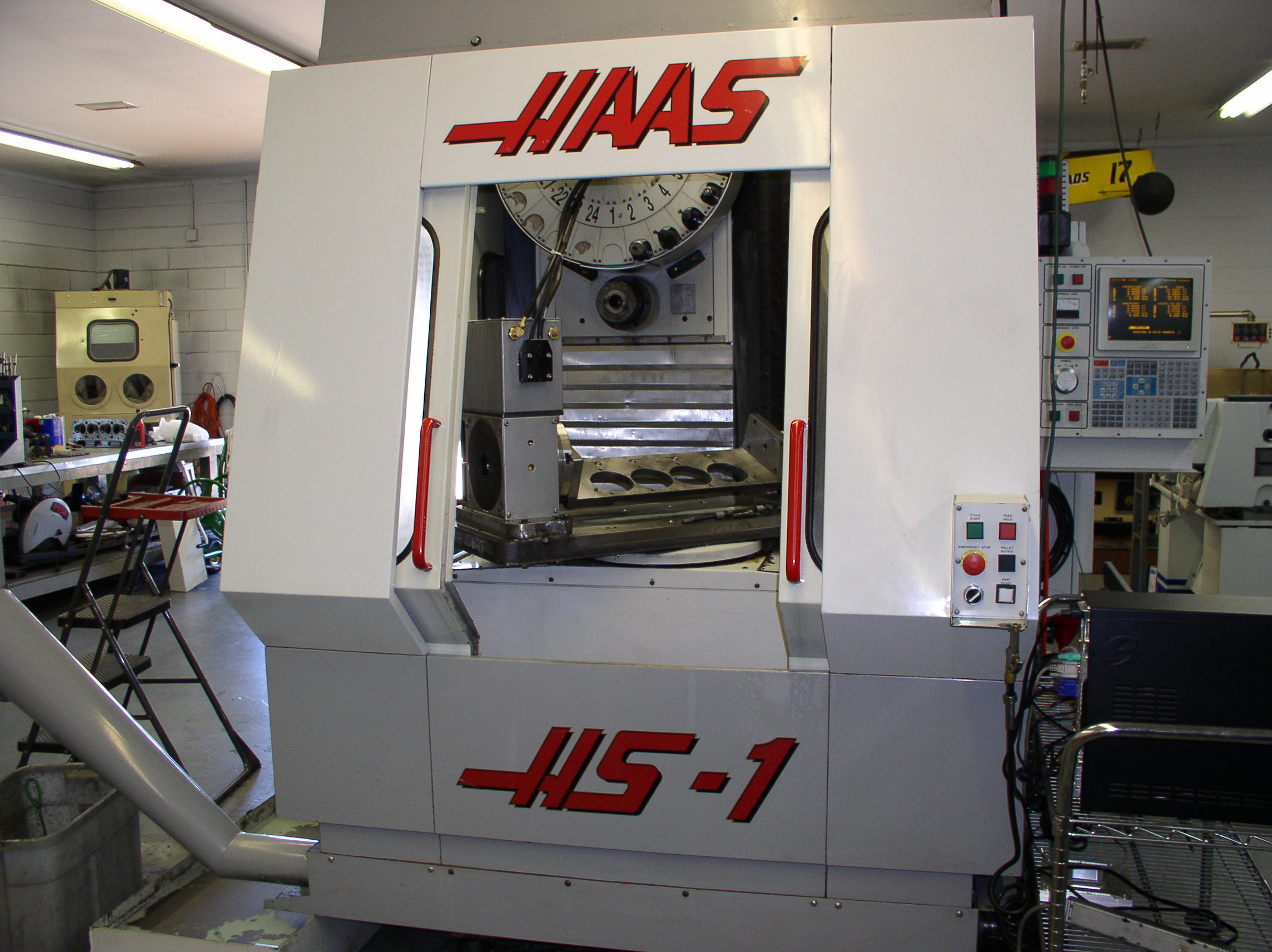

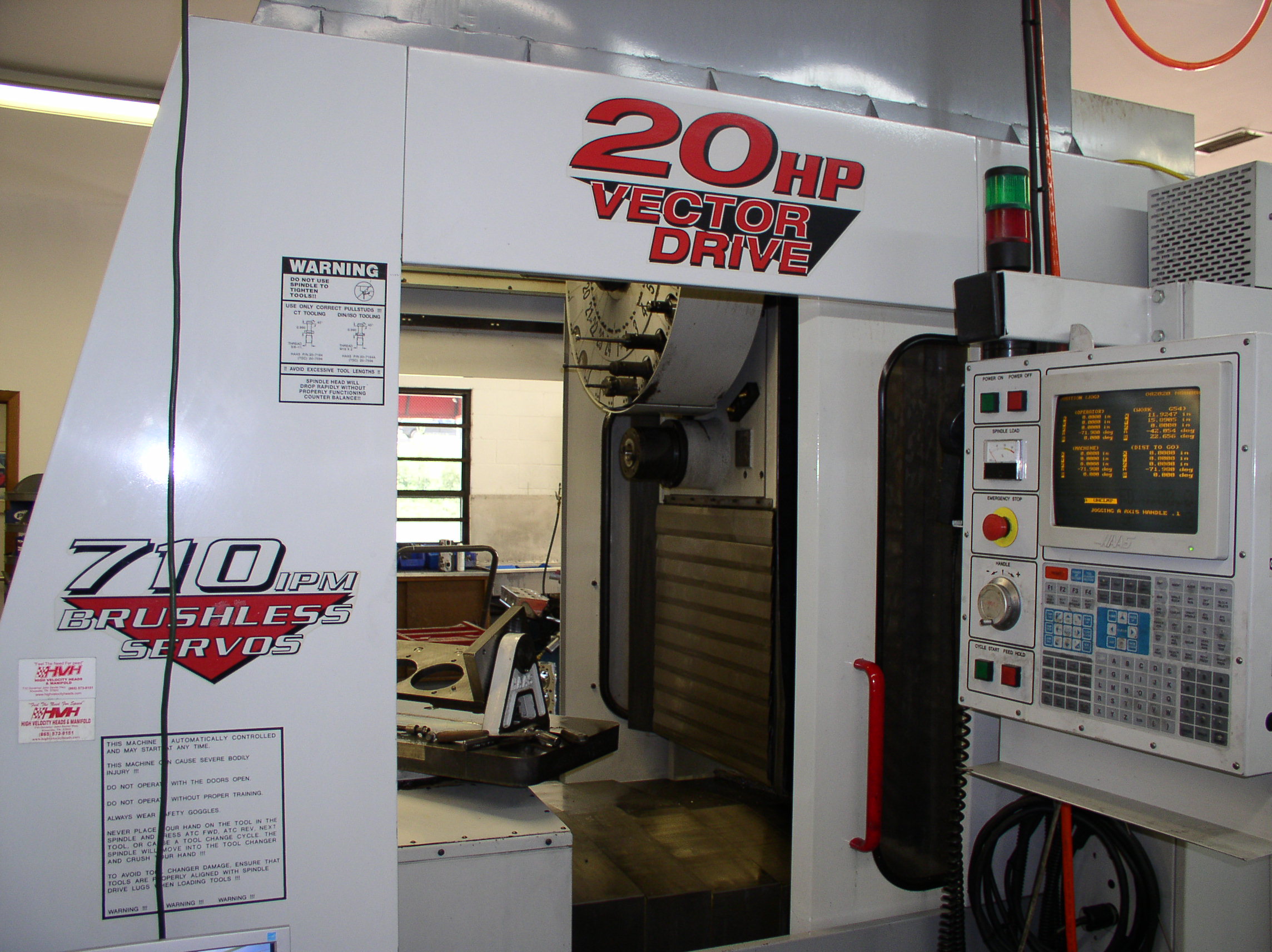

HAAS Horizontal 5 Axis CNC Machining Center

You can own this machine for as little as $1,824.00 per month*

Model HS1R

S/N 50471

Year 1998

HAAS Controller

24" X-Axis

20" Y-Axis

22" Z-Axis

20" Spindle Center to Pallet Surface

24" Spindle End to Pallet Center

Main Motor (AC) 20 HP

Spindle Taper CT40

Spindle Speed 7,500 RPM

Pallet Size 16" x 16"

Pallet Load Capacity 600 Lbs.

Automatic Tool Changer Capacity 24 Tools

Weight 16,000 Lbs.

Gear Drive

Equipped With:

Chip Auger, Remote Jog Handle, Thru Spindle Coolant, Macros, Rotation & Scaling, Floppy Disk Drive, Quick Code Programming, Rigid Tapping, M Code Display Function

4th Axis HRT-310 Rotary Table, 5th Axis HRT-210.

This machine also comes with the fixturing for both Chevy Short block & Big Block Heads.

This machine is currently porting heads and is ready for use on your floor! See Video Below:

Your browser doesn't support the ability to view this movie.

* Based on a 60 month lease with zero advance payments and $1.00 purchase option, other terms are available
